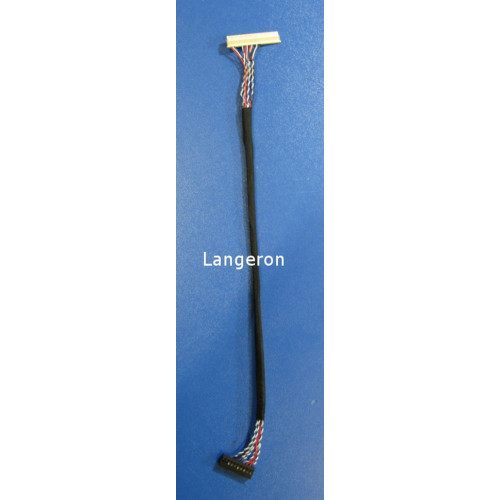

Кабель FIX-30P-S6 Dual 6

Модель: 3007

Короткий опис


Кабель для подключения скалера (платы управления) монитора к матрице, 30 контактов с шагом 0.5мм  2 канала, 6 бит Распиновка :  30Pin (Разъем подключения к матрице): ... Читати далі...

Короткі атрибути


Переглянути всі атрибути

96.00грн.

  • Наявність: На складі

Кабель для подключения скалера (платы управления) монитора к матрице,

30 контактов с шагом 0.5мм

2 канала, 6 бит

Распиновка :

 30Pin (Разъем подключения к матрице):

PIN # SIGNAL NAME DESCRIPTION
1 GND Ground
2 VCC Power Supply
3 VCC Power Supply
4 VEDID DDC Power
5 NC No Connection
6 CLKEDID DDC Clock
7 DATAEDID DDC data
8 Odd_RxIN0- -LVDS differential data input
9 Odd_RxIN0+ +LVDS differential data input
10 GND Ground
11 Odd_RxIN1- -LVDS differential data input
12 Odd_RxIN1+ +LVDS differential data input
13 GND Ground
14 Odd_RxIN2- -LVDS differential data input
15 Odd_RxIN2+ +LVDS differential data input
16 GND Ground
17 Odd_RxCLKIN- -LVDS differential clock input
18 Odd_RxCLKIN+ +LVDS differential clock input
19 GND Ground
20 Even_RxIN0- -LVDS differential data input
21 Even_RxIN0+ +LVDS differential data input
22 GND Ground
23 Even_RxIN1- -LVDS differential data input
24 Even_RxIN1+ +LVDS differential data input
25 GND Ground
26 Even_RxIN2- -LVDS differential data input
27 Even_RxIN2+ +LVDS differential data input
28 GND Ground
29 Even_RxCLKIN- -LVDS differential clock input
30 Even_RxCLKIN+ +LVDS differential clock input

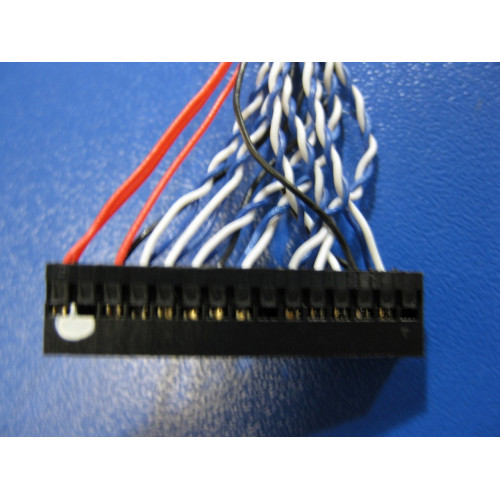

2x15pin (две полосы контактов, для подключения к скалеру):

шаг 2мм

Pin  Definition Description
1 LCD-VDD Power for Panel
2 LCD-VDD Power for Panel
3 LCD-VDD Power for Panel
4 GND Ground
5 GND Ground
6 GND Ground
7 RXO0- LVDS ODD 0 - Signal
8 RXO0+ LVDS ODD 0 + Signal
9 RXO1- LVDS ODD 1 - Signal
10 RXO1+ LVDS ODD 1 + Signal
11 RXO2- LVDS ODD 2 - Signal
12 RXO2+ LVDS ODD 2 + Signal
13 GND Ground
14 GND Ground
15 RXOC- LVDS ODD Clock - Signal
16 RXOC+ LVDS ODD Clock + Signal
17 RXO3- LVDS ODD 3 - Signal
18 RXO3+ LVDS ODD 3 + Signal
19 RXE0- LVDS EVEN 0 - Signal
20 RXE0+ LVDS EVEN 0 + Signal
21 RXE1- LVDS EVEN 1 - Signal
22 RXE1+ LVDS EVEN 1 + Signal
23 RXE2- LVDS EVEN 2 - Signal
24 RXE2+ LVDS EVEN 2 + Signal
25 GND Ground
26 GND Ground
27 RXEC- LVDS EVEN Clock - Signal
28 RXEC+ LVDS EVEN Clock + Signal
29 RXE3- LVDS EVEN 3 - Signal
30 RXE3+ LVDS EVEN 3 + Signal

Подходит для подключения матриц :

B150PG03_V0 LP141WP1 LTN106W1-L01 CLAA150PB0B03A
B150PN01 LP150E02(A2)(P1) LTN141P2-L01 HSD150PK14-A00
B154PW01 LP150E06 LTN141P4-L01 HSD170MGW1-A00
B154SW01 LP150E06 (A3)(K2) LTN141P4-L04 HT14P12-100
B170PW01 LP150E07 LTN141W1-L04 HV150UX1-100
B170PW02 LP150U03(A2)(P1) LTN141WD-L01 HV150UX1-101
B170PW03 LP150U1 LTN141WD-L07 HV150UX1-L01
B170PW04 LP150U1-A2 LTN141WD-L07 (B) IASX12S
B170PW05 LP150X08-A2 LTN150P2-L01 IAUX14
B170PW06 LP154WP1 LTN150P2-L03 IAUX14P
B170UW01 LP154WU1 (A1) LTN150P3-L01 IAUX14S
B170UW02 LP154WU1(A1)(K2) LTN150P4-L02 ITSX95C
LQ150U1LA03 LP154WU1(A1)(K2) LTN150PE-L01 ITSX95E
LQ150U1LH22 LP154WU1(A1)(K3) LTN150PF-L04 ITUX97H
LQ150U1LW03 LP154WU1(TL)(A1) LTN150PG-L02 QD17TL02
LQ150U1LW22 LP154WU1(TL)(A2) LTN150PG-L03
LQ154M1LW02 LP154WU1(TL)(B1) LTN154P1-L02
LQ154M1LW12 LP154WU2(TL)(A2) LTN154P1-L03
LQ170M1LA04 LP171W01 LTN154P1-L04
LQ170M1LA2A LP171W01(A4) LTN154P3-L01
LQ170M1LA3C LP171W01(A4)(K1) LTN154U1-L01
LQ170M1LA4B LP171WP4 LTN154U1-L02
LQ170M1LA4G LP171WP4(TL)(02) LTN154U2-L04
N150P3-L01 LP171WP4(TL)(03) LTN154U2-L06
N150U3-L01 LP171WP4(TL)(B1) LTN154WU1-A1
N154Z1-L02 LP171WP4(TL)(B3) LTN170CT01-001
N170C2-L01 LP171WP4(TL)(B4) LTN170U1-L01
N170C2-L02 LP171WP4(TL)(B5) LTN170WP-L02
  LP171WP4(TL)(N2) LTN170WU-L01
  LP171WP4(TL)(R2) LTN170WU-L02
  LP171WP4-TLN1 LTN170WX-L01
  LP171WU1 LTN170WX-L03
  LP171WU1(A4)(K2) LTN170WX-L05
  LP171WU1(A4)(K5) LTN170WX-L08
  LP171WU1(TL)(A1) LTN170X2-L02
  LP171WU1(TL)(A2) LTN190W1
  LP171WU1(TL)(A5) LTD121KM2M
  LP171WU1(TL)(B2) LTD141EM6K
  LP171WU1-TLA8 LTD154EZ0D
  LP171WU3-TLA1 TX41D56VC1CAA
  LP171WX2 TX41D97VC1GAA
  LP171WX2(A4)
  LP171WX2(A4)(K1)
  LP171WX2(A4)(K9)
  LP171WX2(TL)(A2)
  LP171WX2(TL)(A3)




Склад
Київ
Кількість контактів
30 пін
Довжина
20-25 см
