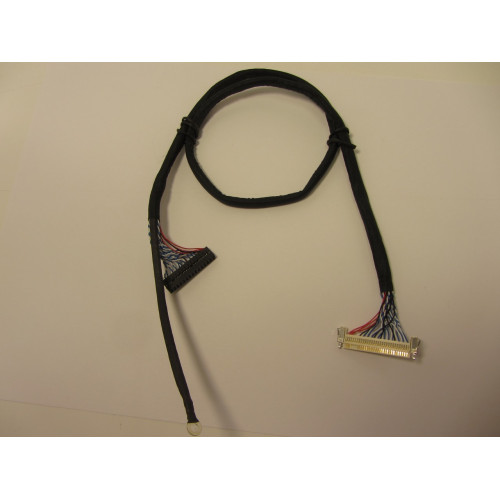

Кабель FIX-30P-S8 Dual 8 55см

Кабель FIX-30P-S8 Dual 8  55см

Поддерживаемые разрешения 1280x1024 1680x1050 1440x900 1920x1080 ...

Количество LVDS - 2

Количество бит - 8

Распиновка FIX-30P выход (возможно есть ошибки)

1 RXO0- minus signal of odd channel 0(LVDS)
2 RXO0+ plus signal of odd channel 0(LVDS)
3 RXO1- minus signal of odd channel 1(LVDS)
4 RXO1+ plus signal of odd channel 1(LVDS)
5 RXO2- minus signal of odd channel 2(LVDS)
6 RXO2+ plus signal of odd channel 2(LVDS)
7 GND ground
8 RXOC- minus signal of odd clock channel (LVDS)
9 RXOC+ plus signal of odd clock channel (LVDS)
10 RXO3- minus signal of odd channel 3(LVDS)
11 RXO3+ plus signal of odd channel 3(LVDS)
12 RXE0- minus signal of even channel 0(LVDS)
13 RXE0+ plus signal of even channel 0(LVDS)
14 GND ground
15 RXE1- minus signal of even channel 1(LVDS)
16 RXE1+ plus signal of even channel 1(LVDS)
17 GND ground
18 RXE2- minus signal of even channel 2(LVDS)
19 RXE2+ plus signal of even channel 2(LVDS)
20 RXEC- minus signal of even clock channel (LVDS)
21 RXEC+ plus signal of even clock channel (LVDS)
22 RXE3- minus signal of even channel 3(LVDS)
23 RXE3+ plus signal of even channel 3(LVDS)
24 GND ground
25 NC NC
26 NC NC
27 NC NC
28 VCC Power supply input voltage
29 VCC Power supply input voltage
30 VCC Power supply input voltage

RXO -> ATX - первая линия

RXE -> BtX - вторая линия

Вход

Выход LVDS РаспиновкаПин Описание
1 LCD_PWR
2 LCD_PWR
3 LCD_PWR
4 GND
5 GND
6 GND
7 ATX0- LVDS 0DD 0- Signal
8 ATX0+ LVDS 0DD 0+ Signal
9 ATX1- LVDS 0DD 1- Signal
10 ATX1+ LVDS 0DD 1+ Signal
11 ATX2- LVDS 0DD 2- Signal
12 ATX2+ LVDS 0DD 2-+ Signal
13 GND
14 GND
15 ATCK- LVDS 0DD Clock- Signal
16 ATCK+ LVDS 0DD Clock+ Signal
17 ATX3- LVDS 0DD 3- Signal
18 ATX3+ LVDS 0DD 3+ Signal
19 BTX0- LVDS EVEN 0- Signal
20 BTX0+ LVDS EVEN 0+ Signal
21 BTX1- LVDS EVEN 1- Signal
22 BTX1+ LVDS EVEN 1+ Signal
23 BTX2- LVDS EVEN 2- Signal
24 BTX2+ LVDS EVEN 2+ Signal
25 GND
26 GND
27 BTCK- LVDS EVEN Clock- Signal
28 BTCK+ LVDS EVEN Clock+ Signal
29 BTX3- LVDS EVEN 3- Signal
30 BTX3+ LVDS EVEN 3+ Signal

Красткий список поддерживаемых матриц :
