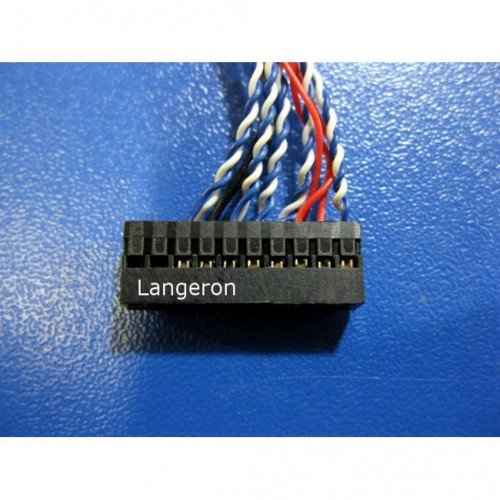

Кабель DF-14-20P-S8 Single 8

Поддерживаемые разрешения 1024x768

Количество LVDS - 1

Количество бит - 8

количество контактов 20

DF14 –20S-1.25C

DF14H-20P-1. 25H

Распиновка DF14 выход (возможно есть ошибки)

1 VDDD +3.3V Power Supply
2 VDDD +3.3V Power Supply
3 GND GND
4 GND GND
5 RXIN0- Negative LVDS Differential Data Input
6 RXIN0+ Positive LVDS Differential Data Input
7 GND GND
8 RXIN1- Negative LVDS Differential Data Input
9 RXIN1+ Positive LVDS Differential Data Input
10 GND GND
11 RXIN2- Negative LVDS Differential Data Input
12 RXIN2+ Positive LVDS Differential Data Input
13 GND GND
14 RXCLK Negative LVDS Differential Clock Input
15 RXCLK Positive LVDS Differential Clock Input
16 GND GND
17 RXIN3- Negative LVDS Differential Data Input
18 RXIN3+ Positive LVDS Differential Data Input
19 GND GND
20 NC Reserved

RXIN -> ATX - первая линия LVDS

 Вход

Выход LVDS РаспиновкаПин Описание
1 LCD_PWR
2 LCD_PWR
3 LCD_PWR
4 GND
5 GND
6 GND
7 ATX0- LVDS 0DD 0- Signal
8 ATX0+ LVDS 0DD 0+ Signal
9 ATX1- LVDS 0DD 1- Signal
10 ATX1+ LVDS 0DD 1+ Signal
11 ATX2- LVDS 0DD 2- Signal
12 ATX2+ LVDS 0DD 2-+ Signal
13 GND
14 GND
15 ATCK- LVDS 0DD Clock- Signal
16 ATCK+ LVDS 0DD Clock+ Signal
17 ATX3- LVDS 0DD 3- Signal
18 ATX3+ LVDS 0DD 3+ Signal
19 BTX0- LVDS EVEN 0- Signal
20 BTX0+ LVDS EVEN 0+ Signal
21 BTX1- LVDS EVEN 1- Signal
22 BTX1+ LVDS EVEN 1+ Signal
23 BTX2- LVDS EVEN 2- Signal
24 BTX2+ LVDS EVEN 2+ Signal
25 GND
26 GND
27 BTCK- LVDS EVEN Clock- Signal
28 BTCK+ LVDS EVEN Clock+ Signal
29 BTX3- LVDS EVEN 3- Signal
30 BTX3+ LVDS EVEN 3+ Signal
