Кабель DF-19-30P-S8 Dual 8

Код товара: 2988
0 отзывов

Краткое описание

Кабель DF-19-30P-S8 Dual 8 30Pin (разъем в ЖК панель LVDS интерфейс):   Pin No Symbol Function Remark 1 R1IN0-  Recei... Читать далее...

Краткие характеристики

Смотреть все характеристики

140.00грн.
  • Доступность: Нет на складе

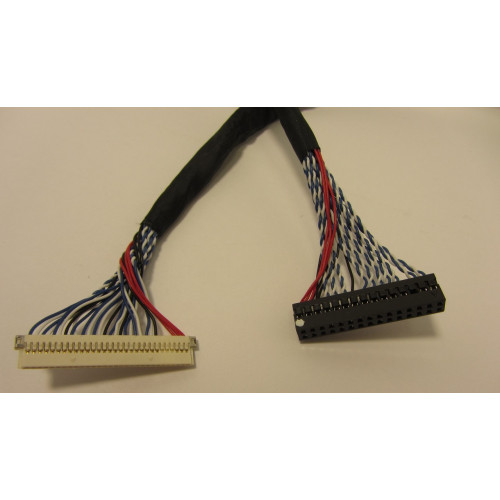

Кабель DF-19-30P-S8 Dual 8

30Pin (разъем в ЖК панель LVDS интерфейс):



Pin No Symbol Function Remark
1 R1IN0-  Receiver signal of Odd side pixels (-) LVDS
2 R1IN0+  Receiver signal of Odd side pixels (+) LVDS
3 R1IN1-  Receiver signal of Odd side pixels (-)  LVDS
4 R1IN1+  Receiver signal of Odd side pixels (+) LVDS
5 R1IN2-  Receiver signal of Odd side pixels (-)  LVDS
6  R1IN2+ Receiver signal of Odd side pixels (+) LVDS
7 GND 　Ground 　
8 CK1IN- Receiver signal of Odd side pixels (-) LVDS
9 CK1IN+  Receiver signal of Odd side pixels (+)  LVDS
10 R1IN3-  Receiver signal of Odd side pixels (-)  LVDS
11 R1IN3+ Receiver signal of Odd side pixels (+) LVDS
12 R2IN0- Receiver signal of Even side pixels (-)  LVDS
13 R2IN0+ Receiver signal of Even side pixels (+)  LVDS
14 GND 　Ground　 　
15 R2IN1-  Receiver signal of Even side pixels (-)  LVDS
16 R2IN1+  Receiver signal of Even side pixels (+)  LVDS
17 GND 　Ground　 　
18 R2IN2-  Receiver signal of Even side pixels (-)  LVDS
19 R2IN2+  Receiver signal of Even side pixels (+)  LVDS
20 CK2IN-  Clock signal of Even side pixels (-) LVDS
21 CK2IN+  Clock signal of Even side pixels (+)  LVDS
22 R2IN3-  Receiver signal of Even side pixels (-)  LVDS
23 R2IN3+  Receiver signal of Even side pixels (+)  LVDS
24 GND 　Ground　 　
25 NC 　Ground　 　
26 NC    Ground　 　
27 NC Ground 　
28 VDD  +5 power supply  Power
29 VDD  +5 power supply  Power
30 VDD  +5 power supply  Power




2x15pin (черный разъем):

Pin  Definition Description
1 LCD-VDD Power for Panel
2 LCD-VDD Power for Panel
3 LCD-VDD Power for Panel
4 GND Ground
5 GND Ground
6 GND Ground
7 RXO0- LVDS ODD 0 - Signal
8 RXO0+ LVDS ODD 0 + Signal
9 RXO1- LVDS ODD 1 - Signal
10 RXO1+ LVDS ODD 1 + Signal
11 RXO2- LVDS ODD 2 - Signal
12 RXO2+ LVDS ODD 2 + Signal
13 GND Ground
14 GND Ground
15 RXOC- LVDS ODD Clock - Signal
16 RXOC+ LVDS ODD Clock + Signal
17 RXO3- LVDS ODD 3 - Signal
18 RXO3+ LVDS ODD 3 + Signal
19 RXE0- LVDS EVEN 0 - Signal
20 RXE0+ LVDS EVEN 0 + Signal
21 RXE1- LVDS EVEN 1 - Signal
22 RXE1+ LVDS EVEN 1 + Signal
23 RXE2- LVDS EVEN 2 - Signal
24 RXE2+ LVDS EVEN 2 + Signal
25 GND Ground
26 GND Ground
27 RXEC- LVDS EVEN Clock - Signal
28 RXEC+ LVDS EVEN Clock + Signal
29 RXE3- LVDS EVEN 3 - Signal
30 RXE3+ LVDS EVEN 3 + Signal




 Подходит для матриц :

LM170E01M170E5-L09
LM170E01(A)M170EG01
LM170E03-TLG1M170EG01 VA
LM190E03(B4)(N9)M170EN04
LM190E03(TL)(B1)M190A1
LM201W01(A6)(K1)M190A1-L01
CLAA170EA07QM190A1-P02
LTM170EH-L01M190EG01
LTM170EU-L01M190EG02
LTM190E4-L02M190EN03
LTM190EP01M190EN04
LTM190M2-L31M190MWW1
HSD170ME13M190PW01 V0
HSD170MGW1-B00M201EW02 VC
HSD190ME12M201UN02-2SD2
HT17E12-210M220EW01
LP201WE1(SL)(01)M240UW01V1
QD17EL07MT170EN01
SVA170SX01MT170EN01-V1
TD170WGCA1MT190AW01
TD170WGCB3MT190EN02

и других

Количество контактов
30 пин
Длинна
20-25 см

Написать отзыв

Внимание: HTML не поддерживается! Используйте обычный текст!
    Плохо           Хорошо
Captcha

Теги: FIX30p, S8, 30pin, LVDS, кабель,
